| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5 |
| Processor manufacturer: | AMD |
| Maximum number of SMP processors: | 1 |
| Processor socket: | Socket AM4 |
| Maximum resolution: | 4096 x 2160 pixels |
| Audio chip: | Realtek ALC892 |
| Audio output channels: | 7.1 channels |
| Power source type: | ATX |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of mounting holes: | 6 |
| Supported memory clock speeds: | 2933, 3600, 3866, 1866, 4133, 4000, 2667, 3733, 4400, 3066, 4466, 3200, 4266, 2133, 3466, 3000, 2400, 2800 |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | No |
| Number of memory slots: | 2 |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Width: | 244 mm |
| Depth: | 210 mm |
| LAN controller: | Realtek RTL8111H |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of chassis fan connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| Front panel connector: | Yes |
| Total number of SATA connectors: | 4 |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 10, 0, 1 |
| Supported storage drive interfaces: | PCI Express 3.0, Serial ATA |

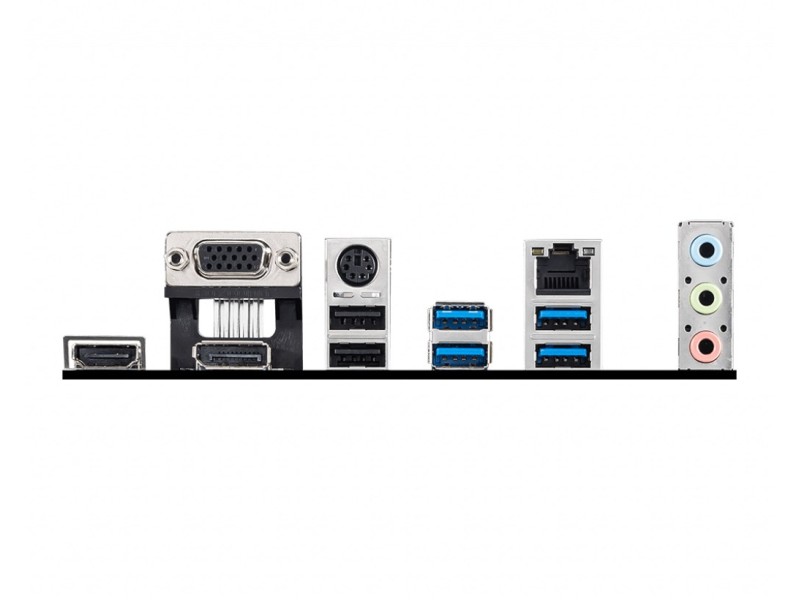

| DisplayPorts quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| PS/2 ports quantity: | 1 |
| Microphone in: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 slots: | 1 |
